Residential Communities Sliding Barrier Turnstile Gate Core Mechanism

Model Number : pyz-001

Lane Dimension : 500mm–1200mm (customizable)

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Customizable Item : Adjustable stroke available for customization

Place of Origin : China

Operating Voltage : DC 24V

Price : Discuss based on needs

Packaging Details : Wooden case

Application Scenarios : Serves as the opening & closing drive component for turnstiles in residential communities, office buildings, airports, government institutions and other venues. Especially suitable for turnstile lanes with medium & large pedestrian flow demand.

Supply Ability : 500 units per month

Core Structural Advantages : 1. All structural parts are precisely CNC machined. Equipped with high-strength bearings and slide rails to guarantee long service life and structural rigidity. Adopts connecting rod mechanism to realize self-locking during gate opening & closing; silent b

Delivery Time : 30 to 90 days

Brand Name : GUIANKEJI

Certification : EMC-FCC

Name : Sliding Barrier Turnstile Gate

MOQ : 2 sets

Optional Motors : Brushless motor, brushless servo motor, servo motor

Contact Now

Sliding Gate Mechanisms Customizable Stroke for Medium & Large Pedestrian Flow Airport/Tunnel Switch Sliding Gate Core
Sliding Turnstile Core Mechanism designed as the opening and closing drive component for turnstiles in various security and access control applications. Engineered specifically for venues with medium to large pedestrian flow requirements.
Technical Specifications
Category Details
Product Name Sliding Turnstile Core Mechanism
Application Scenarios Residential communities, office buildings, airports, government institutions and other venues with medium & large pedestrian flow demand
Customizable Item Adjustable stroke available for customization
Lane Dimension 500mm-1200mm (customizable)
Operating Voltage DC 24V
Optional Motors Brushless motor, brushless servo motor, servo motor
Core Structural Advantages
  • All structural parts are precisely CNC machined for superior quality and consistency
  • Equipped with high-strength bearings and slide rails to guarantee long service life and structural rigidity
  • Adopts connecting rod mechanism to realize self-locking during gate opening and closing
  • Silent ball linear guides deliver ultra-quiet operation
  • Compatible with both indoor and outdoor installation environments
Passing Speed: 30-40 persons per minute
Operating Temperature: -25°C to 75°C
Product Images

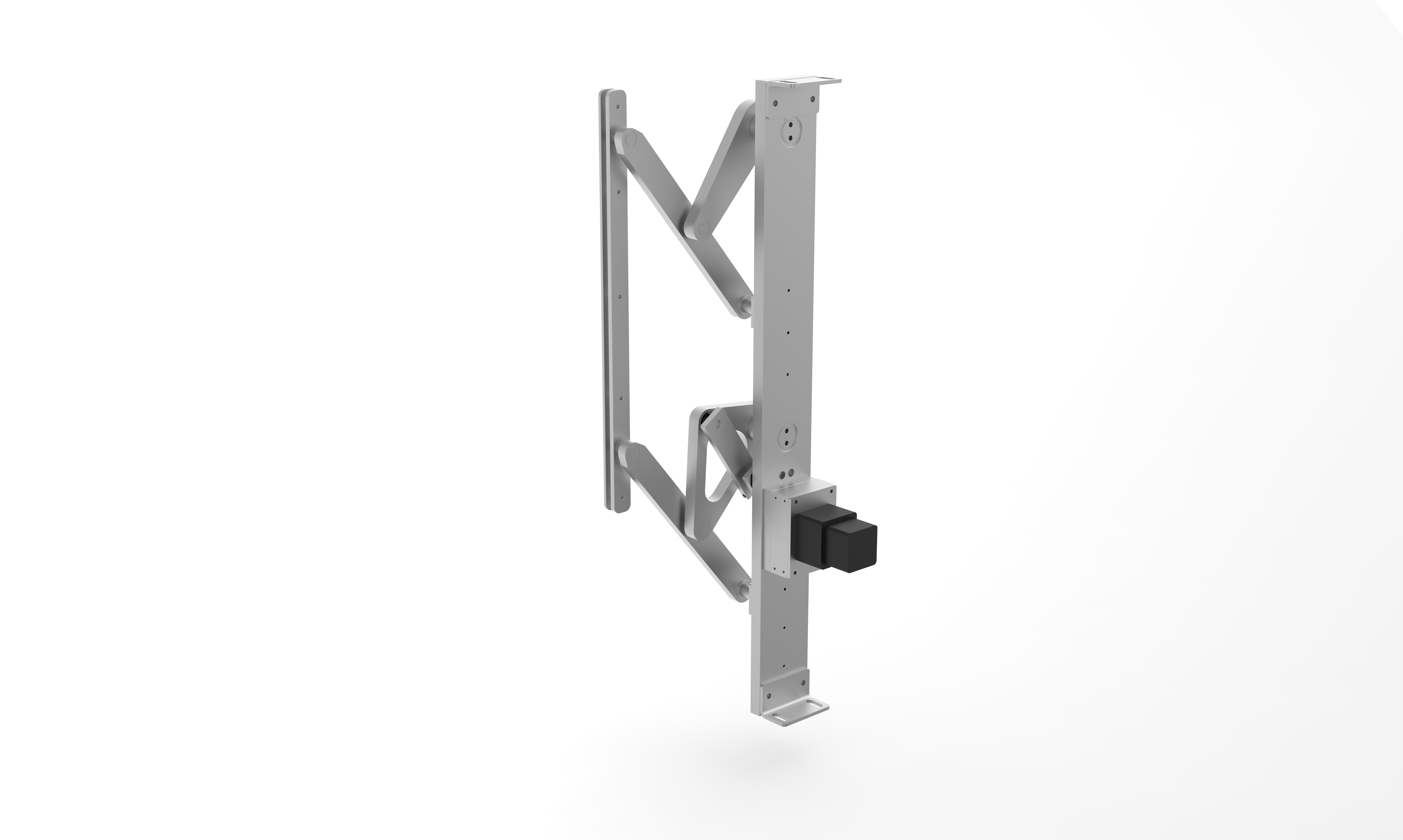

Residential Communities Sliding Barrier Turnstile Gate Core Mechanism Residential Communities Sliding Barrier Turnstile Gate Core Mechanism
